Samples

As an example, the code below computes 100 s of a Cu 2D solid with a water circle and a aluminum square.

>>> import heatrapy as htp
>>> example = htp.SingleObject2D(
...     293,
...     material='Cu',
...     boundaries=(300, 0, 0, 0),
...     size=(20, 20)
... )
>>> example.change_material(
...     material='Al',
...     shape='square',
...     initial_point=(5, 2),
...     length=(4, 4)
... )
>>> example.change_material(
...     material='water',
...     shape='circle',
...     initial_point=(5, 13),
...     length=4
... )
>>> example.compute(100, 10)

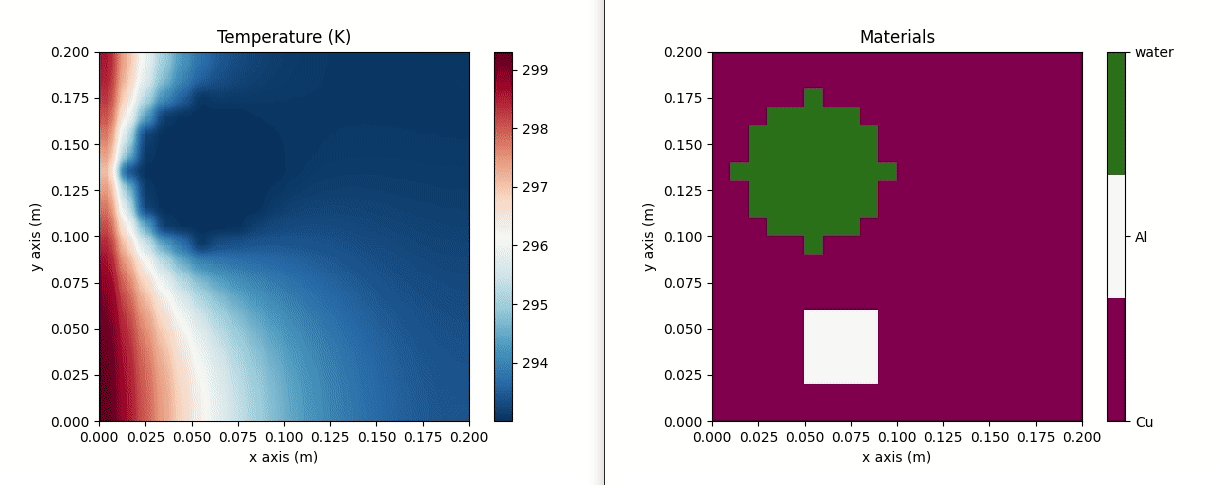

The output at the end of the computation is the following:
